How to save energy and maintain comfortable temperatures year-round?

The most efficient way to do something about this is to make smarter use of that free heat source: the sun in combination with opening and closing your window coverings (roller shutters, external venetian blinds, interior blinds…)​

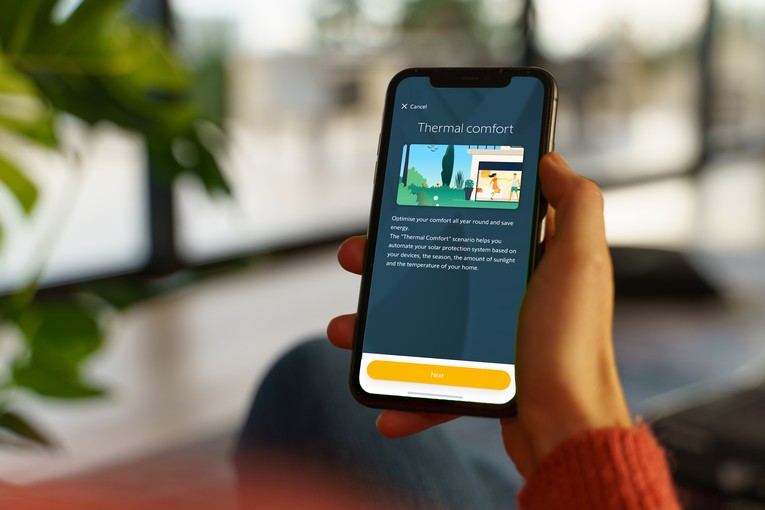

The "Thermal Comfort" pre-set scene in the TaHoma app gives you the opportunity to optimise your well-being and energy efficiency year-round by automating your window coverings according to your devices, the season and the time of day. They automatically adjust to the right position, at the right moment, even away from home.

How does TaHoma's Thermal Comfort scene work?

Create it in a few clicks

Step-by-step guidance makes it quick and easy to create. TaHoma presets the opening and closing of your equipment according to their exposure and time of day. With or without sensors, TaHoma works for your comfort and energy savings.

In summer, as soon as the indoor temperature rises, your sun protection closes automatically to protect home from overheating. In winter, they open to catch the heat, and close when the sun sets to keep the heat in.

Key features

Responds to indoor and outdoor conditions e.q. weather conditions.

block-heat

Keep your home cooler by blocking the sun or heat on warmer days.

solar-heating

Warm up your home with the sun and keep heat in on colder days.

Optimise your energy consumption (heating, A/C), which is good for your wallet and the environment!

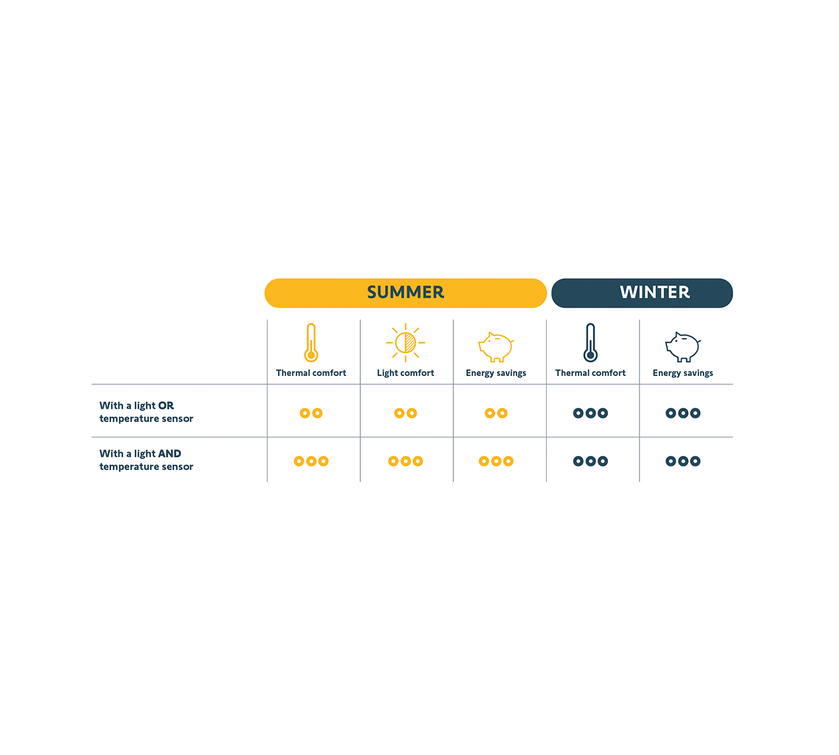

Add sensors to maximise performance

Outdoor sunlight and/or indoor temperature sensors can be added. Thanks to them, your window coverings can be automated in summer and winter according to the temperature inside and the level of sunlight.​

Did you know? The sunlight sensor built-in the solar panel of the RS100 roller shutter and the indoor temperature sensor embedded in the Amy io wall switch can enhance the scene.

How to configure the Thermal Comfort scene?

Required: Somfy TaHoma switch and the TaHoma app.

Step 1

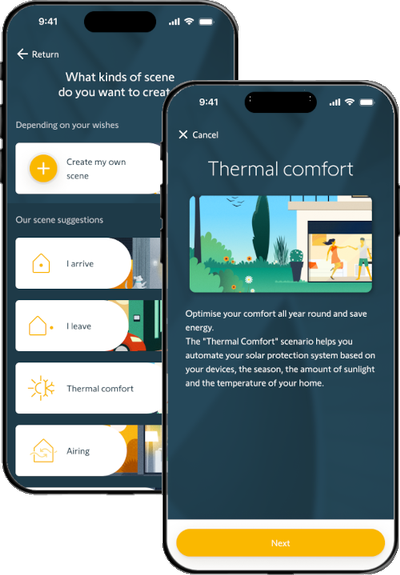

Open TaHoma app and click on «Scene» menu

Create a new scene, then choose "Thermal confort" in the list of our suggested scenes.

Step 2

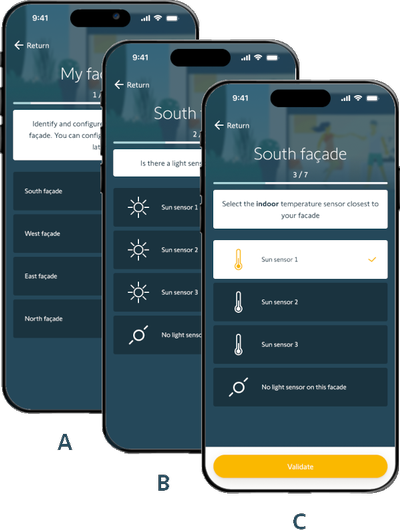

Identify & configure your façade

Identify & configure the most exposed façade.​ ​


Is there a indoor temperature sensor or a outdoor brightness sensor you want to associate to this façade?​ ​

  • A: For installation without sensors, choose ‘no sensor’​
  • B: For installation with a light sensor, select one of them​
  • C: For installation with a temperature sensor, select one of them​ (the other façades can be configured later)

Step 3

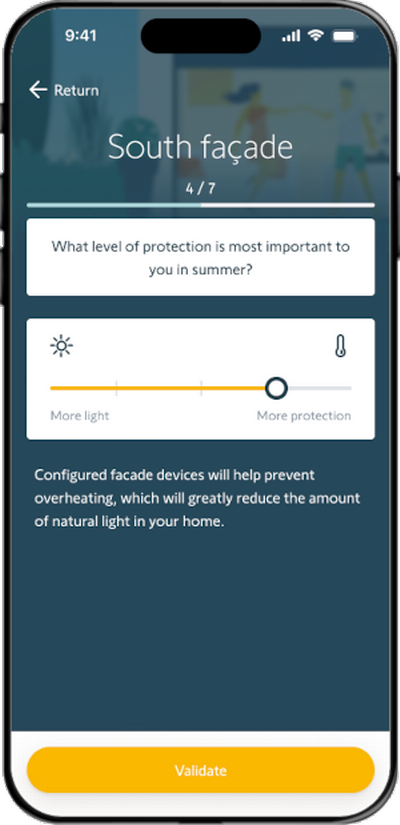

Choose your level of protection for summer season

5 modes of protection are avaible to find the right balance between thermal efficiency and light confort during summer period.​ ​


Choose your level of protection for summer season with the slider, choose the level of protection (by default the level 4 is selected).​​



Information:

  • The last level will be the most restrictive in terms of light and also the most thermally efficient.​
  • The first level will be the least restrictive in terms of light and also the least thermally efficient.

Step 4

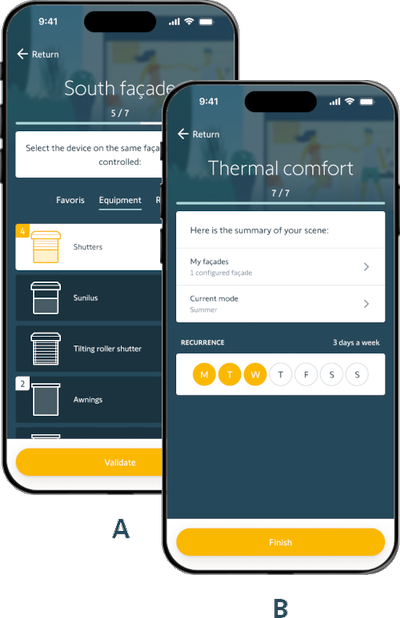

Select your devices

Select the device on the same façade that will be controlled:

  • A: your facade is configured! You can also set up your other façades now or come back to them later
  • B: Here is the summary of your scene.

Step 5

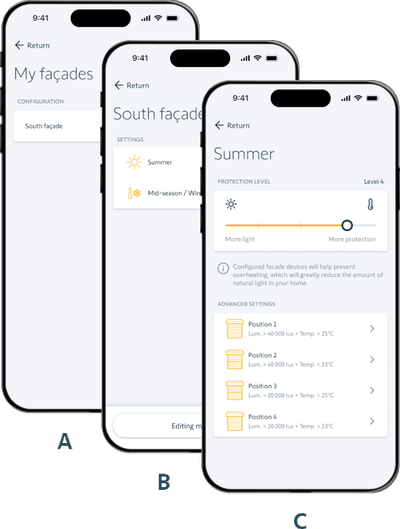

Easy customization

From the summary of your scene:​ ​

- A: Select the façade you want to customize​ ​

- B: Select the season you want to customize:​

  • Summer​
  • Winter & Mid season ​

- C: For a quick customization, you can adjust the protection level​ with the slider



Or you can access to the advanced settings.

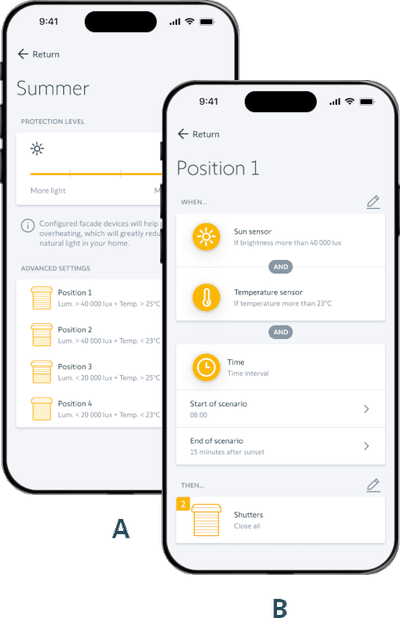

Step 6

Advanced settings 1/2

To access advanced settings:​

  • A: Choose action you want to customize: Position1, Position 2, etc.
  • B: Then choose the parameters you want to customize

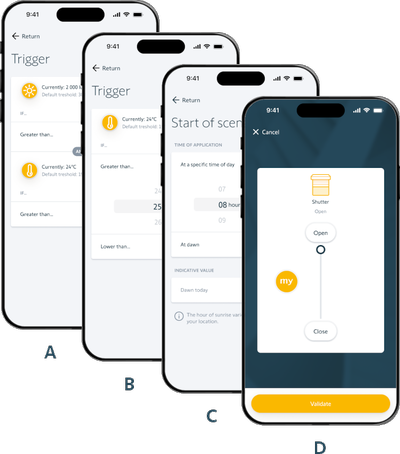

Step 7

Advanced settings 2/2

You can customize:

  • A: Light thershold (your installation has sun sensors)​
  • B: Temperature thershold (your installation has indoor temperature sensors)​
  • C: Time slots​
  • D: Percentage of opening / closing of devices

Step 8

Please note

You must manually select the season if you want to switch from the summer program to the winter & mid season program.

Create scene
Identify the most exposed façade
Choose level of protection
Select devices
Thermal comfort scene summmary
Thermal comfort advanced settings 1/2
Thermal confort - Advanced settings (2/2)

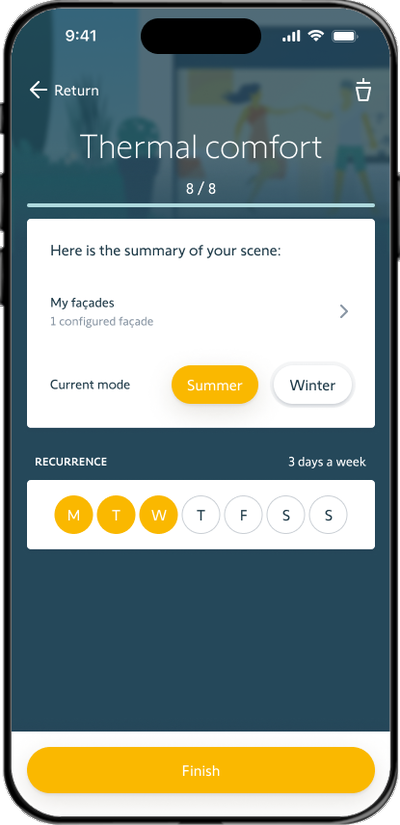

Select season
